Name: High Cr heat resistant grate bar for sintering machine
Material available: Cr13, Cr15, Cr18, Cr20, Cr25, Cr27, Cr15Mo1, Cr18Mo1, Cr26Ni4, Cr22Ni4.1.4777, 1.4776, 40CrNiSi2512,
1.4823
Process: LFC or shell molding
Features: 1. Measure the dimensions by special gauge, to keep the dimensions consistent with the drawing.
2. Testing by X-ray, to make sure the inner defect can be controlled within the standard JISG0581, class 3.
3. To make the impact test and hardness test, to make sure the impact test value no less than 2mmu2.5J/mm2,
hardness >HS40° according to the standard JISZ2242
Usage: the main part of the sintering machine.

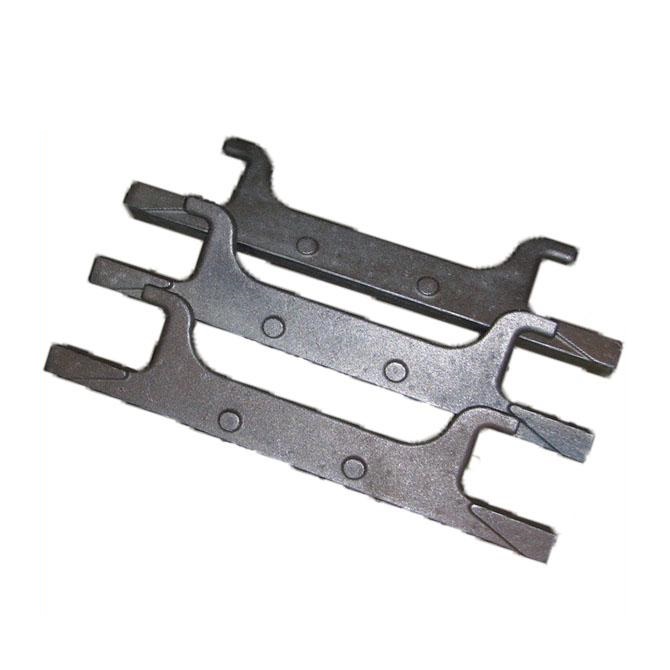

Reference picture as follows:
